Studies page

When you log into the Studycast system, the Studies page is displayed. This page lists all studies that have been or are currently being uploaded to the Studycast system which you are authorized to view. The list includes only those studies you are authorized to view.


When you log into the Studycast system, the Studies page is displayed. This page lists all studies that have been or are currently being uploaded to the Studycast system which you are authorized to view. The list includes only those studies you are authorized to view.

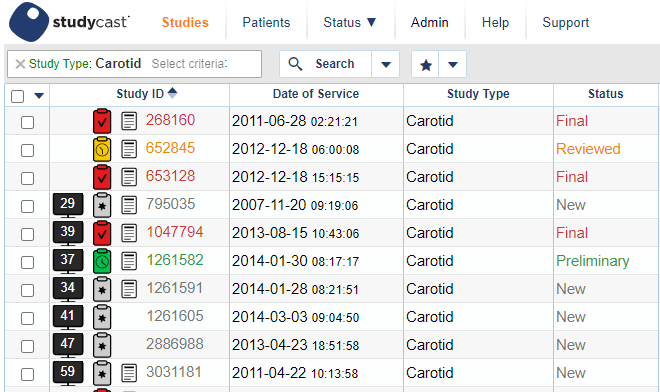

The grid lists each study in a separate row. Several icons appear in the Study ID column.


1. The Study View icon displays the number of images in the study. Click this icon to view the images in the Study Viewer.
2. The Worksheet icon is color coded according to the status of the study. Click this icon to open the Studycast worksheet.


For more information on status colors, see the Study Status Color Coding section below.

1. The Report icon is displayed only when a report has been generated for the study. The report may be preliminary or final depending on the status of the study. Click this icon to view the report.


Other columns display information associated with the study. You can choose which columns appear in the grid and in what order. For information about configuring the columns, see Configure the Grid.

Explanation of all Studies Page grid columns

1. Study ID: Unique numerical identifier the Studycast system assigns to a study when it is uploaded.

2. Original Study ID: Identifies the original study from which a clone was created.
3. Date of Service: Displays the date the study was performed in Year-Month-Date (YYYY-MM-DD) format.
4. Status: Displays the current status of the study (Uploading, New, Preliminary, Reviewed, or Final). For an explanation of the color codes, see Study status color coding.
5. Study Type: The Studycast worksheet type currently assigned to the study. The study type should correspond to the type of exam performed on the patient.
6. Study Protocol: Selected protocol for type of exam performed. For example, a Venous LE study can have a protocol of Insufficiency, Duplex, Reflux, or Post Ablation.
7. Study Description: If the user has entered a description for the study (not available on all worksheets), it is displayed here.
8. Sender: ID signifying the server or PC from which a study was uploaded to the Studycast system.
9. Division Code: This code is used to assign studies to divisions automatically. This code cannot be changed.
10. Division Name: Name of the division a study is assigned to in the Studycast system.  The division name can be changed.
11. Patient Name: Patient's name (Last, First).
12. Patient ID: Medical Record Number, or another unique identifier for the patient.
13. DOB: Patient's date of birth in Year-Month-Date (YYYY-MM-DD) format.
14. Reading Group: Name of physician (or group of physicians) assigned to read the study.
15. Reading User: If the Reading Group selected has multiple members, the Reading User field can be used to select a specific physician from that group.
16. Referring Group: Name of physician (or group of physicians) who referred the study.
17. Referring User: If the Referring Group selected has multiple members, the Referring User field can be used to select a specific physician from that group.
18. Ordering Physician: A secondary referring field where you can select another provider to also receive a copy of the final report.
19. Performing User: Initials sent by the modality to identify the sonographer/technologist.
20. Approved By: Name of the physician who approved the study.
21. Approved Date: Date the study was approved by the reading physician.
22. Care Type: When enabled, Care Types allow you to categorize studies to trigger visual cues at set intervals.
23. Location: Site-specific location where a study was performed.
24. Procedure: Displays the procedure selected on the worksheet for a study: Complete, Limited, Duplex, etc. This option is available only on ultrasound studies.
25. Modality: Displays the modality, which is captured when the study is uploaded. The modality can be changed on the Worksheet.
26. Accession / Encounter #: Displays the accession or encounter number uploaded with the study.
27. Verified Date: Date the study was verified (only applies to Studycast accounts that use the Verifying Physician functionality).
28. Verified By: Name of the reading group assigned to verify the study (only applies to Studycast accounts that use the Verifying Physician functionality).
29. Verifying Physician: Name of physician who verified the study (only applies to Studycast accounts that use the Verifying Physician functionality).
30. Procedure Code: Displays the procedure code for the study.
31. Diagnosis Code: Displays the diagnosis code for the study.


Study status color coding

Each study is color coded to indicate its status. The color coding is applied to the Worksheet icon, Study ID, and Status.

1. New (Optional) - Grey : The study has been uploaded but is not yet available for the reading physician. The technologist may enter information in the worksheet and then set the status to Preliminary. Once the status is Preliminary, the study will be available for the reading physician. NOTE: This status is optional and might not be applicable in your implementation of the Studycast system.
2. Preliminary - Green : The study is ready for the reading physician to review.
3. Reviewed (Optional) - Yellow : The reading physician has approved the study, and a report has been generated, but it has not been assigned to the referring physician.  This status allows for another user to view the report before it is sent to the referring physician or other final destination, or a second physician to verify the study before the report is finalized. NOTE: This status is optional and might not be applicable in your implementation of the Studycast system.
4. Final - Red: The study has been approved by the reading physician, and the final report has been generated.
