Archive Studies

Updated

Intended Use

Archive Studies is typically used in situations such as:

  • Exporting individual studies as DICOM to send to patients or referring physicians.

  • Exporting individual studies as DICOM to upload into other systems on an individual, "as needed" basis.

Unintended Use

Export in Bulk: The Archive feature is best suited for individual study exports. If you need to export a large volume of studies at once, please visit Studycast Data Export and fill out the form.



Looking for another option? If you'd rather send a secure link rather than a file, CoreShare lets you share studies with patients or colleagues via email or text message without generating a downloadable archive.

Steps to Archive Studies:

  1. Click the check box next to each study you want to archive.

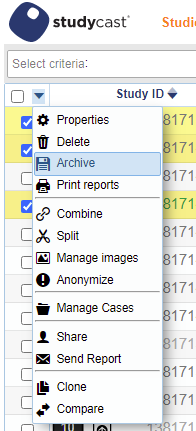

  2. Click the down arrow at the top of the check box column. In the menu that opens, select Archive.

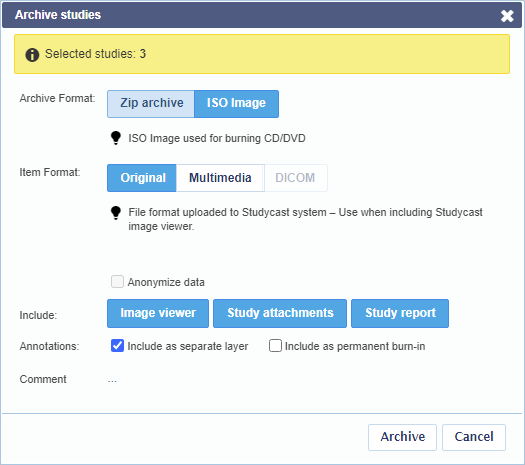

The Archive studies window opens.

  1. Archive Format: You have the option to generate a Zip archive or ISO Image. If you plan to burn the archive to a CD or DVD, choose ISO Image. If you plan to save the archive on a local or network drive, choose Zip archive.
  2. Item Format: You can choose to archive the study in the Original format, Multimedia, or DICOM.
    • Original: File format that was uploaded - Use when including Studycast image viewer.
    • Multimedia: Useful for presentations (jpeg/mp4).
    • DICOM: Medical image format (useful for viewing in DICOM viewer). To see annotations in a non-Studycast viewer, check the Include as permanent burn-in box for Annotations. The archive will include the SR DICOM file if it was uploaded with the study.

  3. Anonymize data: Check the box to anonymize study data.

    This option does not affect patient data displayed within study images. To anonymize the study completely, you must mask patient information in the images with annotations first. Be sure the Include as permanent burn-in box is checked.

  4. Include: Choose whether to include the Image Viewer, Study attachments, and/or Study report.
  5. Annotations: If you've made annotations on any of the study's images or loops, you can choose to include the annotations as a separate layer or have them permanently burned into the images and loops. If you include them as a separate layer, they can only be viewed in the Studycast image viewer.
  6. Comment: To add a comment, click the dots and begin typing. This comment can be helpful in identifying the study on the Downloads page when multiple studies are listed.
  7. Click the Archive button to submit the archive request.

Archive Size Limitations

Both ZIP and ISO archive formats have size limitations:

  • ZIP Max Size = 4 Gigabytes
  • ISO Max Size = 8.4 Gigabytes

Item format and selected options affect the overall size of your archive.

  • Original and Multimedia are typically smaller in size because they use the format the image was uploaded to Studycast in. Often this is JPEG for images and MP4 for cine loops.
  • DICOM images are much larger in size and fewer will fit into a single archive.

If the archive you are trying to create is too large, there are a few things you can try to reduce the size:

  • Switch to ISO format instead of ZIP
  • Select fewer studies to include in the archive
  • Choose Original or Multimedia format instead of DICOM
  • Exclude the Studycast Image Viewer or Study Attachments

Retrieve Archived Studies

To retrieve your archived studies, click on Downloads in the main menu at the top of the page. The Downloads page indicates the status of each archive request. When the study has been archived, the status will be Completed, and a link will be provided for you to download the study.

Archived studies are available on the Downloads page for one week. The date that each study will be removed from the Downloads page is listed in the Expiration Date column.

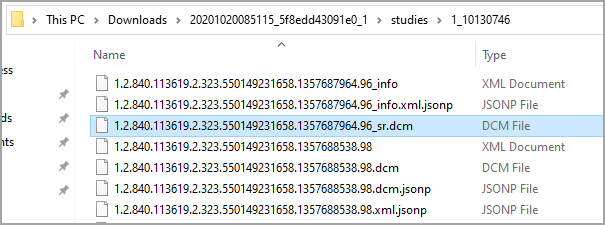

The archive will include the SR DICOM file if it was uploaded with the study.


Extract Files from a Zip Archive

If you saved the studies in a Zip archive, you will need to unzip the downloaded file and extract the contents to view the files. To do that:

  1. Open the .zip file.
  2. Click the Extract all files button.
  3. Click the Extract button.

Burn the archive to a CD or DVD

If you chose to archive the studies as an ISO image, place a blank disc in the CD/DVD drive. To burn the disc using Windows Image Burner:

  1. Right click the .iso file and select Burn disc image.
  2. Click the Burn button. The status will indicate when the disc has been burned successfully.
